Introducing the latest model, the brand new FUSO SUPER GREAT provides the ultimate performance that fulfills your needs. Mitsubishi FUSO developed a new AMT – “ShiftPilot” – which is capable of producing an unexpected performance that is suitable for any type of condition. With our latest technologies, FUSO SUPERGREAT brings unprecedented excitement to the road.
Sorry. We did not find anything.
-
Super Great
Heavy Duty

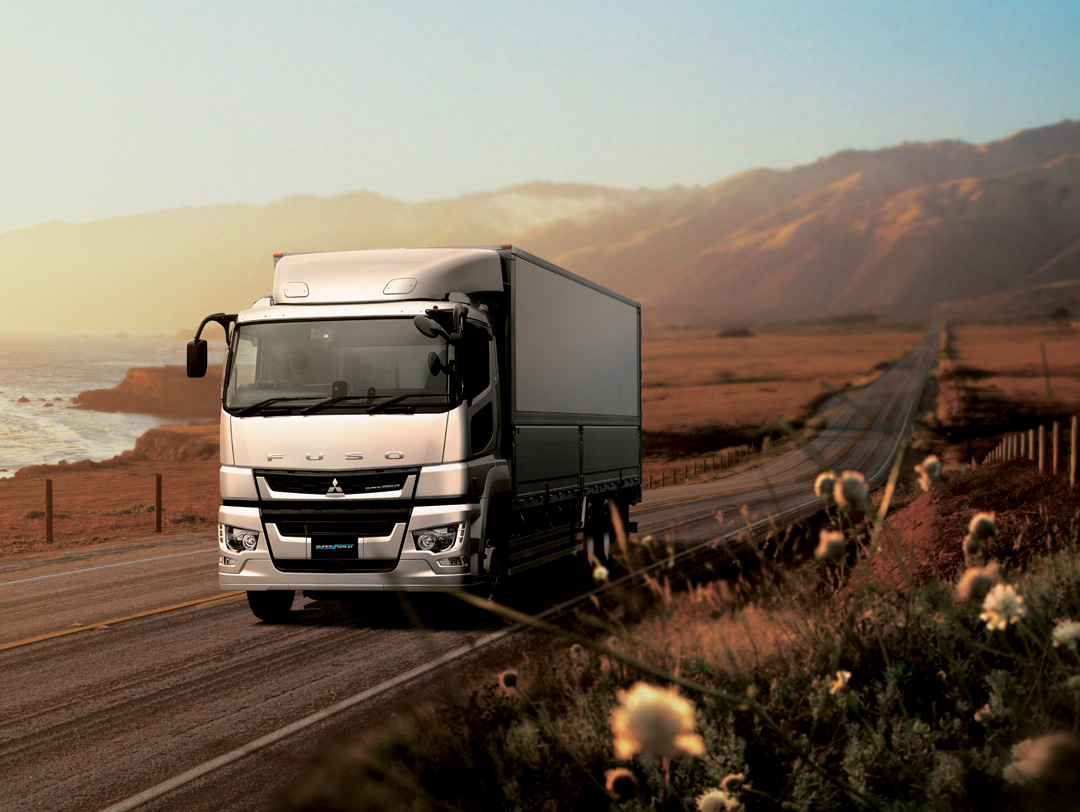

Up to 6 months or 60,000 km oil change interval
-
Super Great
Heavy Duty

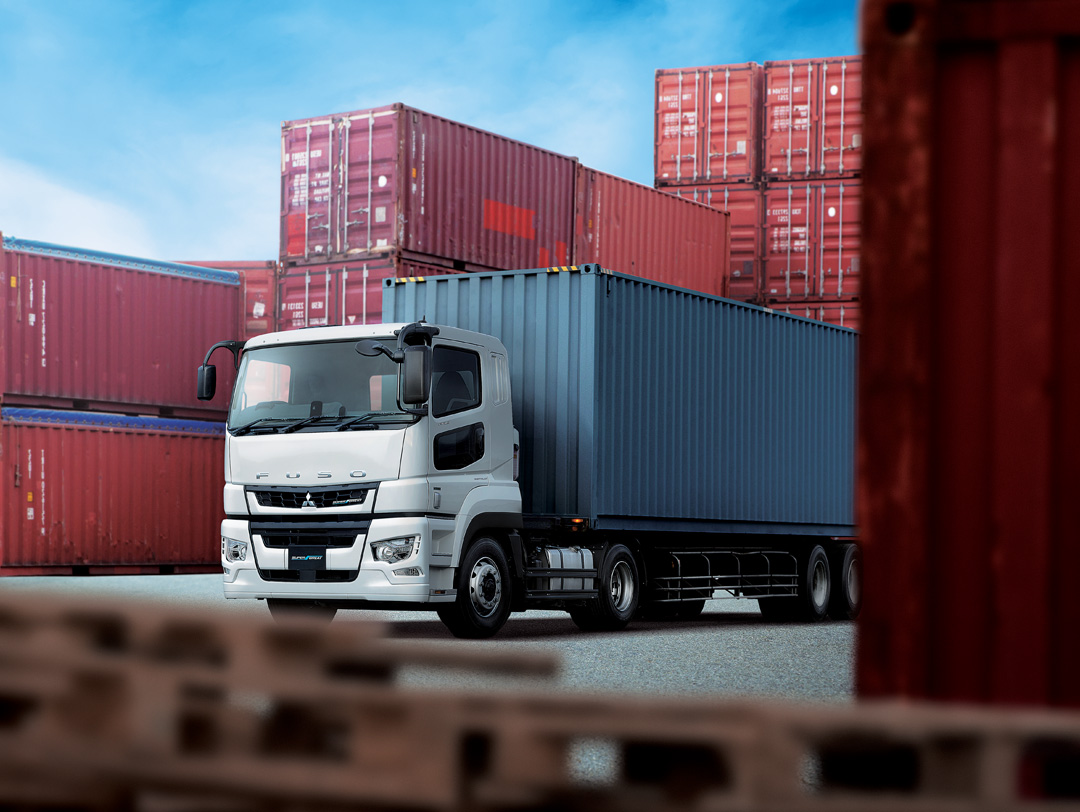

From 24-30 tonnes cargo to 38-44 tonnes tractor
-
Super Great
Heavy Duty

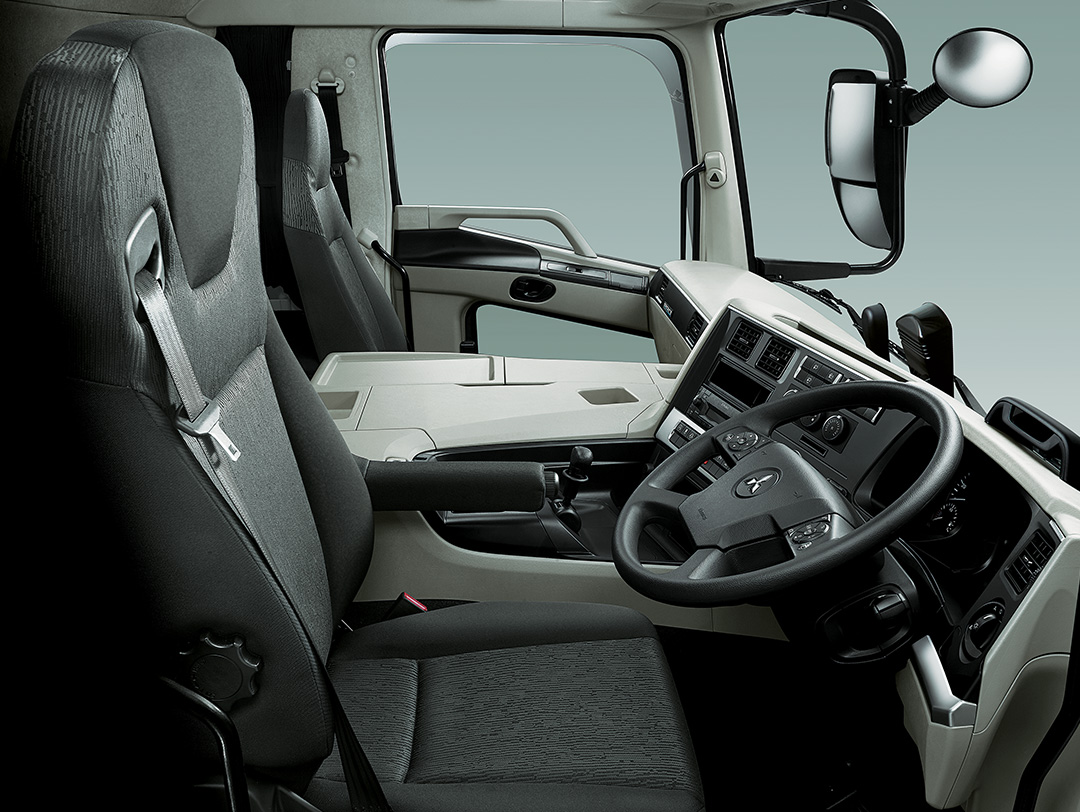

Toughness You Demand, Comfort You Deserve
-
Super Great
Heavy Duty

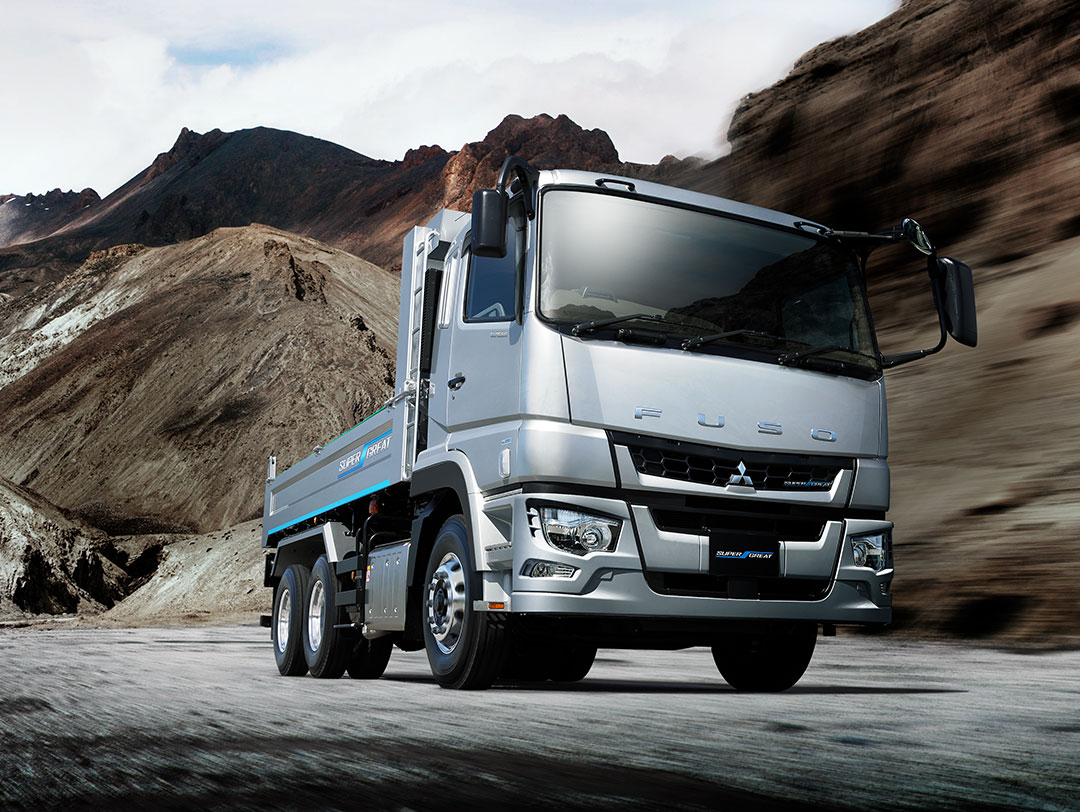

Maximum Safety Meets Outstanding Efficiency
-
Super Great
Heavy Duty

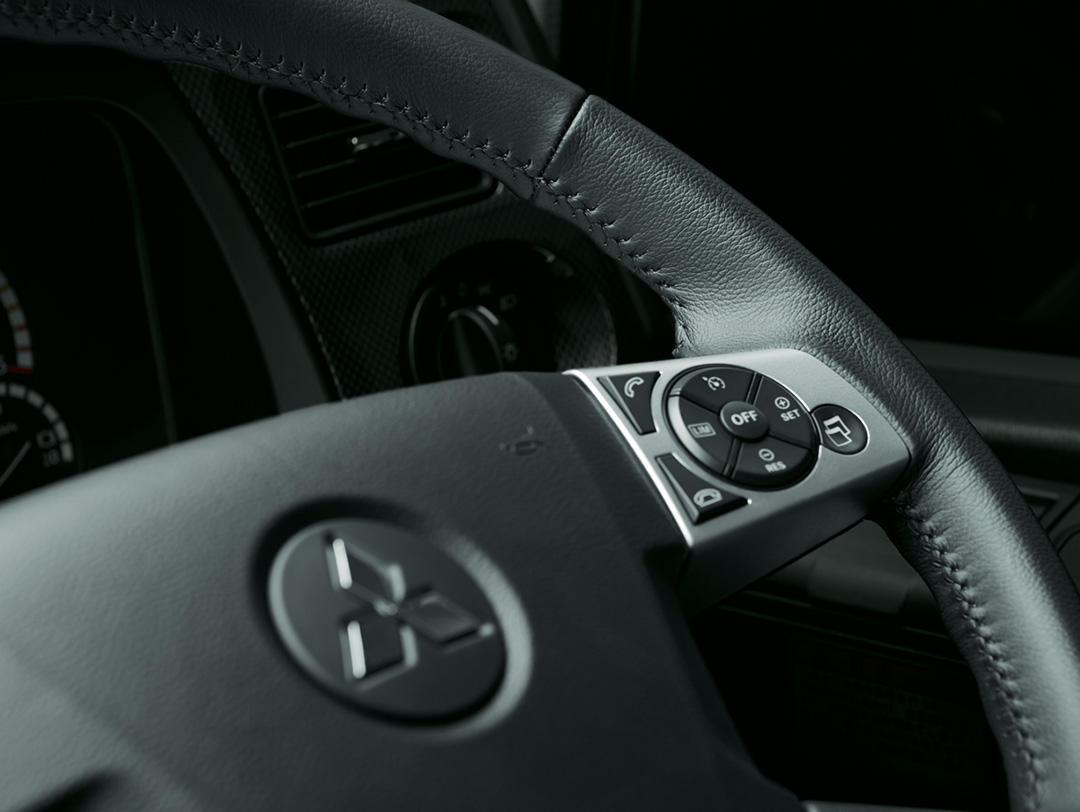

Down to Every Last Detail
Dimension and Drawings – Truck (GVW: 24t – 30t)
 24Tonnes, FV70HKM2VDAA (6x4) | 24Tonnes, FV70HPK2VDAA (6x4) | 24Tonnes, FV70HSK2VDAA (6x4) |  30 Tonnes, FS72HS2VDAA (8x4) | |
The Unit is mm | ||||
24 Tonnes | 30 Tonnes | |||
FV70HKM2VDAA (6x4) | FV70HPK2VDAA (6x4) | FV70HSK2VDAA (6x4) | FS72HS2VDAA (8x4) | |
WB | 4300 | 5370 | 5870 | 5870 |
OW | 2480 | 2480 | 2480 | 2480 |
CW | 2490 | 2490 | 2490 | 2490 |
OL | 7640 | 10140 | 10795 | 10140 |
FL | 1370 | 1370 | 1370 | 1370 |
RL | 1970 | 3400 | 3555 | 2900 |
AL | 3422 | 4492 | 4992 | 4992 |
BL | 5392 | 7892 | 8547 | 7892 |
TF | 2050 | 2050 | 2050 | 2050 |
TR | 1850 | 1850 | 1850 | 1850 |
OH | 3200 | 3180 | 3200 | 3210 |
RH | 1055 | 1056 | 1056 | 1054 |
Dimension and Drawings – Tractor (GVW: 38t – 44t)
 38Tonnes, FP70HDR2VDAA (4X2) | 38Tonnes, FP74HDR2VDAA (4X2) |  44Tonnes, FV70HJR4VDAA (6X4) | |
The Unit is mm | |||
38 Tonnes | 38 Tonnes | 44 Tonnes | |
FP70HDR2VDAA (4X2) | FP74HDR2VDAA (4X2) | FV70HJR4VDAA (6X4) | |
WB | 3250 | 3250 | 3910 |
OW | 2480 | 2480 | 2480 |
CW | 2490 | 2490 | 2490 |
OL | 5565 | 5565 | 6740 |
FL | 1370 | 1370 | 1370 |
RL | 945 | 945 | 1460 |
TF | 2050 | 2050 | 2050 |
TR | 1850 | 1850 | 1850 |
OH | 3180 | 3190 | 3320 |
Specification – Truck (GVW: 24t – 30t)
Model Name | |||||
Model | FV70HKM2VDAA (6x4) | FV70HPK2VDAA (6x4) | FV70HSK2VDAA (6x4) | FS72HS2VDAA (8x4) | |
G.V.W. | kg | 24,000 | 30,000 | ||
Dimensions | |||||
Wheelbase | mm | 4,300 | 5,370 | 5,870 | |
Overall Length | mm | 7,640 | 10,140 | 10,795 | 10,140 |
Overall Width | mm | 2,490 | |||
Overall Height | mm | 3,200 | 3,185 | 3,200 | 3,210 |
Cab to rear axle | mm | 5,392 | 7,892 | 8,547 | 7,892 |
Max. Body Length | mm | 5,962 X 2,500 | 7,724 x 2,500 | 8,474 X 2,500 | |
Engine | |||||
Model | OM470 | ||||
Engine type | In-line 6 cylinder, 24 valve diesel engine, Turbocharger and Intercooler, Common Rail System (CRS), Exhaust Gas Recirculation (EGR), DPF + | ||||
Capacity | c.c. | 10,677 | |||
Max. Output (JIS) | ps / rpm | 394 / 1,600 | |||
Max. Torque (JIS) | kg-m / rpm | 204 / 1,100 | |||
Fuel Tank Capacity | liter | 400 | |||
Urea Tank Capacity | litre | 60 | |||
Max. Speed | km/hr | 111 | 120 | 111 | |
Approach Angle | % | 49 | 44.5 | 39 | |
Transmission | |||||
Gearbox | 12 forward & 2 reverse speeds " +/-" (Automated Manual Transmission) | ||||
Steering System | Hydraulic power booster, tilt steering column with steering lock | ||||
Brake System | |||||
Service & Auxiliary Brake | Full air, Dual Circuit , Wedge Type with auto-slack adjust, | ||||
Suspension system | Front | Taper leaf spring with shock absorber | |||
Rear | Taper leaf spring | ||||
Tire | 295/80R22.5 | ||||
Specification – Tractor (GVW: 38t – 44t)
Model Name | ||||
Model name | FP70HDR2VDAA (4X2) | FP74HDR2VDAA (4X2) | FV70HJR4VDAA (6X4) | |
G.V.W. | kg | 16,000 | 24,000 | |
G.C.W. | kg | 38,000 | 44,000 | |
Dimensions | ||||
Wheelbase | mm | 3,250 | 3,910 | |
Overall Length | mm | 5,565 | 6,740 | |
Overall Width | mm | 2,490 | ||
Overall Height | mm | 3,180 | 3,190 | 3,320 |
Engine | ||||
Model | OM470 | |||
Engine type | In-line 6 cylinder, 24 valve diesel engine, Turbocharger and Intercooler, Common Rail System (CRS), | |||
Capacity | c.c. | 10,677 | ||
Max. Output (JIS) | ps / rpm | 394 / 1,600 | 455 / 1,600 | |
Max. Torque (JIS) | kg-m / rpm | 204 / 1,100 | 224 / 1,100 | |
Fuel Tank Capacity | liter | 350 | 400 | |
Urea Tank Capacity | litre | 60 | ||
Max. Speed | km/hr | 111 | 100 | |
Min. Turning Radius | m | 5.7 | 7 | |
Approach Angle | % | 23.5 | 31 | |
Transmission | ||||
Gearbox | G230 - 12 forward & 2 reverse speeds " +/-" | G330 - 12 forward & 2 reverse speeds " +/-" | ||
Steering System | Hydraulic power booster, tilt steering column with steering lock | |||
Brake System | ||||
Service & Auxiliary Brake | Full air, Dual Circuit , Wedge Type with auto-slack adjust, Anti-lock brake system (ABS) , | |||
Hand Brake | Spring Brake on axle wheels | Spring Brake on 2rd & 3th axle wheels | ||
Suspension system | Front | Taper leaf spring with shock absorber | ||
Suspension system | Rear | Taper leaf spring with shock absorber | AirForce Suspension | Taper leaf spring |
Tire | 295 / 80R22.5 | |||
