    • Fighter

      Medium Duty

      State-of-the-art design and technology

      State-of-the-art design and technology

    • Fighter

      Medium Duty

      13.5/16/23.2 tonnes which suit different business needs

      13.5/16/23.2 tonnes which suit different business needs
  • Product Info
  • E-Catalog
  • Total Safety Driving Assistance System
  • Dimension and Drawings
  • Specification
Brochure

Product Info

To deliver goods in a safe and sound manner, the new Fighter has evolved further. Improvements have been made especially on driving safety and comfort in hope of keeping drivers fresh and alert. We ensure that our trucks reach the highest safety standards, which comprises of Active Sideguard Assist® (ASA®), Active Brake Assist 5 (ABA®5), Lane Departure Warning System (LDWS), Attention Assist (AA), and Electronic Stability Program/ESP®. With additional safety features like Cruise Control System, ABS and EBD, SRS airbag, we aim to promote enhanced safety for the driver, the truck, and the world outside.

To meet the demands of environment protection, we adopted the famous “BlueTec® technology” – a cutting edge technology used to break down harmful chemicals during emission. The urea used on cars is a non-corrosive colorless liquid. Its concentration is 32.5% and shall comply with DIN70070 standards.

E-Catalog

  • FIGHTER 13.5 Tonnes - 16 Tonnes Trucks

    Total Safety Driving Assistance System

    Download PDF

  • FIGHTER 23.2 Tonnes Trucks

    Download PDF

    • Total Safety Driving Assistance System

    Taking the driver’s safety as the main concern, we draw the commercial car industry onward to a new driving era.

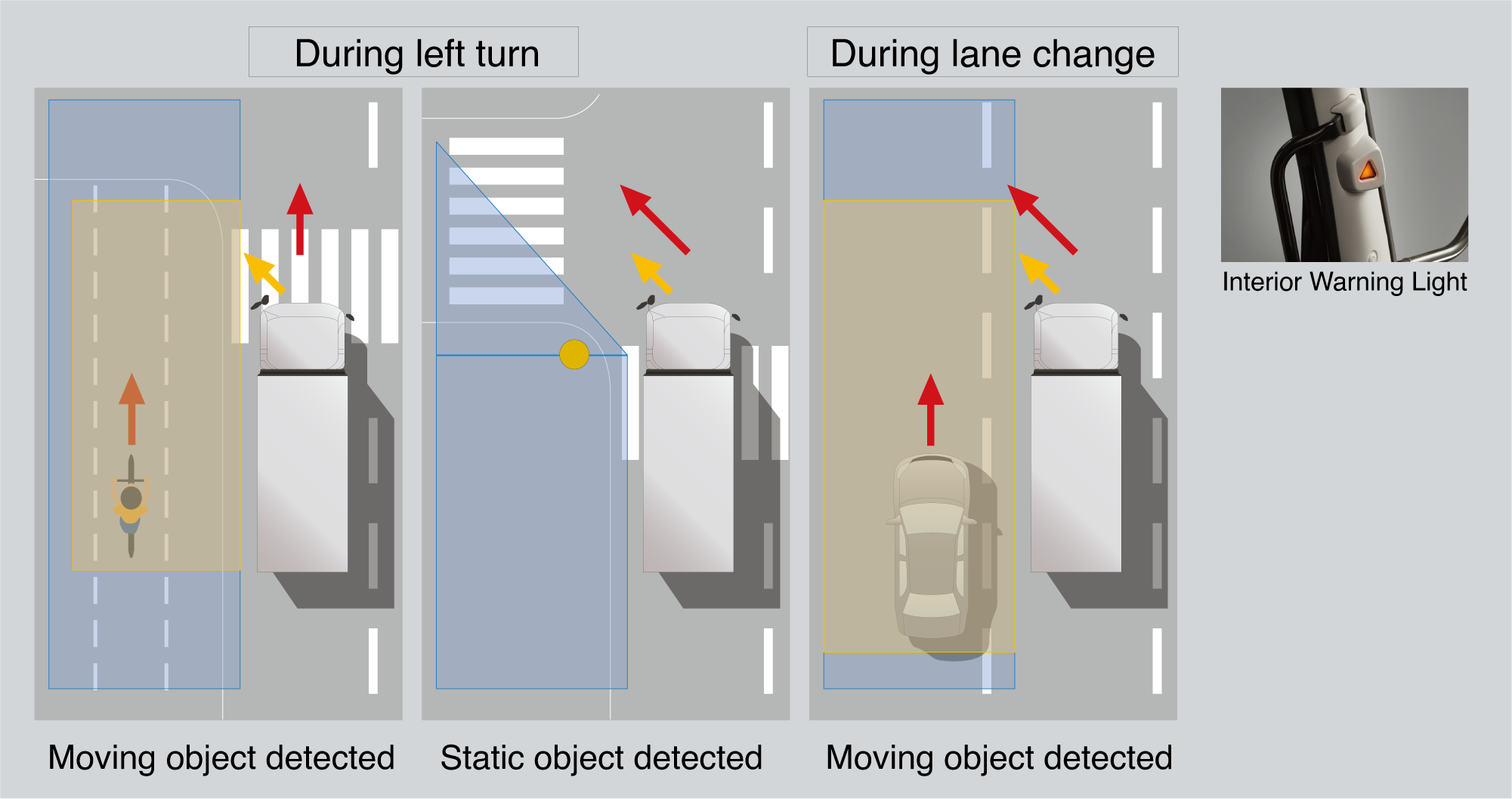

    Active Sideguard Assist® (ASA®)

    When a possible imminent collision on the left is detected by radar sensor, ASA® provides visual and/or acoustic action warnings to driver to reduce the risk of collision.

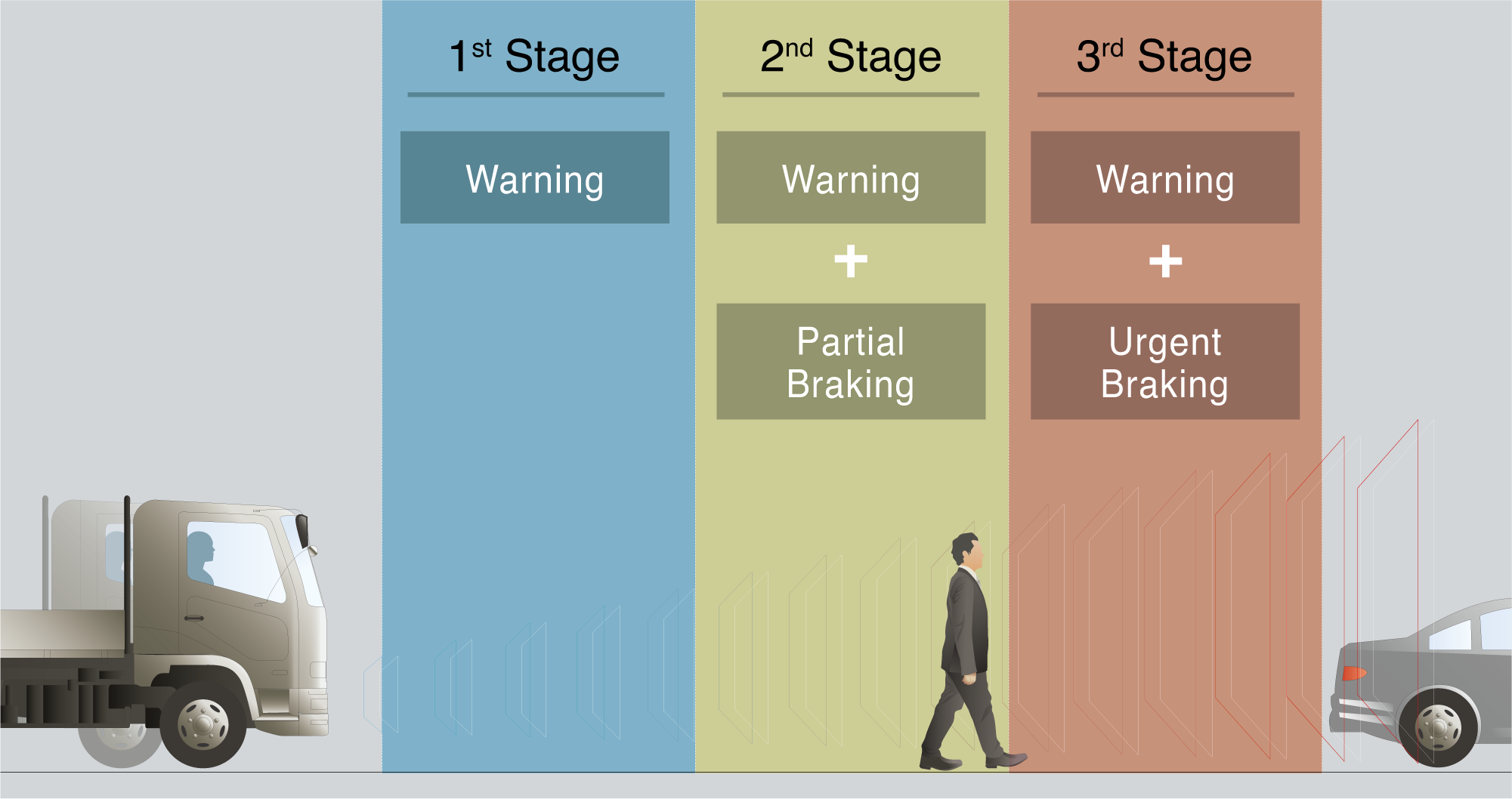

    Active Brake Assist 5 (ABA®5)

    ABA®5 works in 3 stages of audible/visual warning and automatic braking to prevent a collision with a forward vehicle or reduce the impact by decelerating the collision speed.

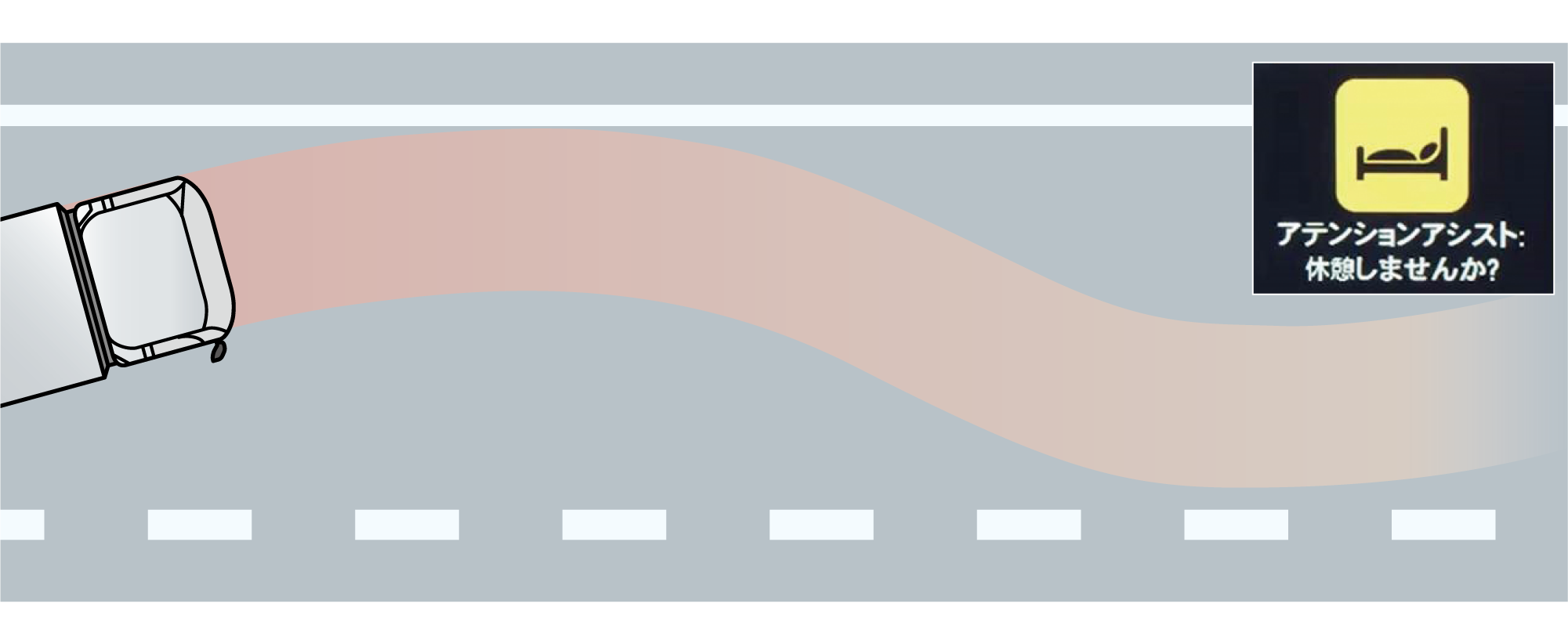

    Attention Assist (AA)*

    When AA detects that the driver’s attention level is low, it will give visual warning and acoustic signal to remind the driver to take a break.

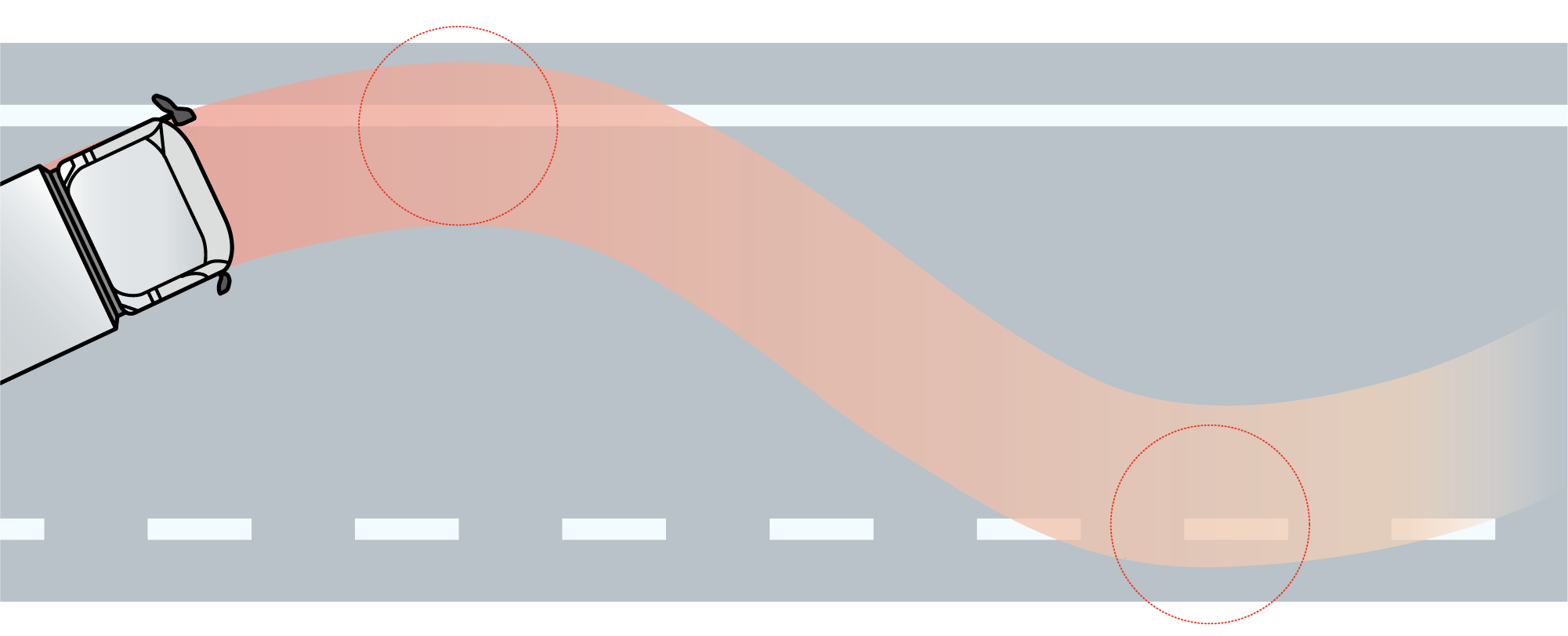

    Lane Departure Warning System (LDWS)*

    If the LDWS detects unintentional lane departures, it triggers visual and acoustic warnings to alert the driver.

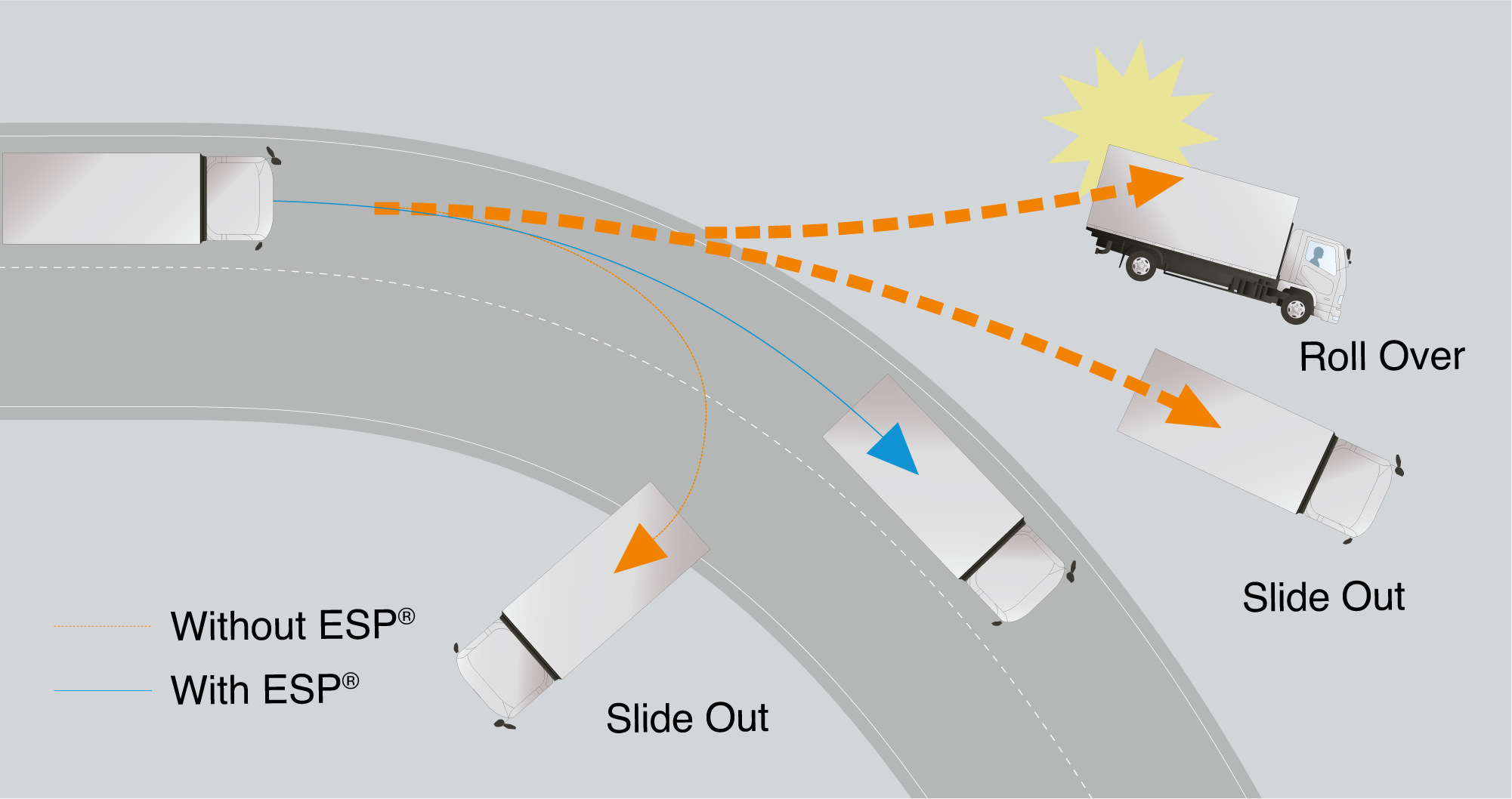

    Electronic Stability Program (ESP®)

    ESP® collects driving data via sensor to determine and correct traction loss to reduce the risk of understeer, oversteer, and roll-over.

    *With speed over 60km/hr

    These advanced safety devices work only under certain circumstances. They may not work correctly under certain circumstances depending on road conditions and weather conditions.

    Dimension and Drawings – FIGHTER (GVW: 13.5t)

    FIGHTER (GVW: 13.5t)

    FIGHTER (GVW: 13.5t)

    The Unit is mm

    FUSO FIGHTER 13.5 Tonnes Truck

    FK62FGZ5RDAD

    FK62FKZ5RDAD

    WB

    3,810

    4,870

    OW

    2,255

    2,255

    CW

    2,170

    2,170

    OL

    6,555

    8,105

    FL

    1,135

    1,135

    RL

    1,600

    2,090

    AL

    2,955

    4,015

    BL

    4,555

    6,105

    TF

    1,775

    1,775

    TR

    1,710

    1,710

    OH

    2,525

    2,525

    RH

    1,006

    1,006

    Dimension and Drawings – FIGHTER (GVW: 16t)

    FIGHTER (GVW: 16t)

    FIGHTER (GVW: 16t)

    The Unit is mm

    FUSO FIGHTER 16 Tonnes Truck


    FM65FM6RDAC

    FM65FP6RDAC

    WB

    5,550

    6,080

    OW

    2,470

    2,470

    CW

    2,370

    2,370

    OL

    9,365

    10,280

    FL

    1,245

    1,245

    RL

    2,530

    2,915

    AL

    4,805

    5,335

    BL

    7,335

    8,250

    TF

    1,925

    1,925

    TR

    1,850

    1,850

    OH

    2,675

    2,675

    RH

    1,143

    1,143

    Dimension and Drawings – FIGHTER (GVW: 23.2t)

    FIGHTER (GVW: 23.2t)

    FIGHTER (GVW: 23.2t)

    The Unit is mm

    FUSO FIGHTER 23.2 Tonnes Truck

    FN62FR6RDAA

    FN63FU6RDAA/B

    WB

    5,650

    6,530

    OW

    2,470

    2,470

    CW

    2,370

    2,370

    OL

    9,695

    11,000

    FL

    1,245

    1,245

    RL

    2,800

    3,225

    AL

    4,905

    5,785

    BL

    7,705

    9,010

    TF

    1,925

    1,925

    OH

    2,670

    2,630

    RH

    1,080

    990

    Specification – FIGHTER (GVW: 13.5t)

    Model Name

    Model Name

    FUSO FIGHTER 13.5 Tonnes Truck

    Model

    Model Code

    FK62FGZ5RDAD

    FK62FKZ5RDAD

    G.V.W.

    kg

    13,500

    Front Axle Capacity

    kg

    5,000

    Rear Axle Capacity

    kg

    9,200

    Dimensions

    Wheelbase

    mm

    3,810

    4,870

    Overall Length

    mm

    6,555

    8,105

    Overall Width

    mm

    2,265

    Overall Height

    mm

    2,525

    Cab to rear axle

    mm

    4,555

    6,105

    Max. Body Length

    mm

    5,151 x 2,400

    6,837 x 2,400

    Engine

    Model

    6M60-CAT5

    Engine type

    In-line 6-cylinder DOHC 24-valve, Common rail system (CRS) VGTurbo intercooler, DPF + BlueTec (SCR system)

    Capacity

    7,545

    Max. Output (JIS)

    240 / 2,270

    Max. Torque (JIS)

    76 / 950 – 2,270

    Fuel Tank Capacity

    Litres

    200

    Urea Tank Capacity

    Litres

    23

    Max. Speed

    km/hr

    116

    Approach Angle

    %

    45.5

    Transmission

    Type

    6-speed manual

    Steering

    Hydraulic Power Steering

    Min. Turning Radius

    m

    6.9

    8.6

    Brake System

    Service & Auxiliary Brake

    Full Air, Dual Circuit, FUSO Taper Roller, Automatic Brake adjustment, ABS System

    Hand Brake

    Full Air Spring Brake on Rear Wheels

    Tire

    265 / 70R19.5

    Specification – FIGHTER (GVW: 16t)

    Model Name

    Model Name

    FUSO FIGHTER 16 Tonnes Truck

    Model

    FM65FM6RDAC

    FM65FP6RDAC

    G.V.W.

    kg

    16,000

    Front Axle Capacity

    kg

    6,000

    Rear Axle Capacity

    kg

    10,000

    Dimensions

    Wheelbase

    mm

    5,550

    6,080

    Overall Length

    mm

    9,365

    10,280

    Overall Width

    mm

    2,470

    Overall Height

    mm

    2,675

    Cab to rear axle

    mm

    7,335

    8,250

    Max. Body Length

    7,935 x 2,500

    8,783 x 2,500

    Engine

    Model

    6M60-CAT6

    Engine type

    In-line 6-cylinder DOHC 24-valve, Common rail system (CRS) VGTurbo intercooler, DPF + BlueTec (SCR system)

    Capacity

    cc

    7,545

    Max. Output (JIS)

    PS/rpm

    270 / 2,200

    Max. Torque (JIS)

    kg-m/rpm

    80 / 1,100 - 2,400

    Fuel Tank Capacity

    Litres

    300

    Urea Tank Capacity

    Litres

    49

    Max. Speed

    km/hr

    116

    Approach Angle

    %

    37

    Transmission

    Type

    6-speed manual

    轉向系統

    Hydraulic Power Steering

    Min. Turning Radius

    m

    9.2

    10

    Brake System

    Service & Auxiliary Brake

    Full Air, Dual Circuit, FUSO Taper Roller, Automatic Brake adjustment, ABS System

    Hand Brake

    Full Air Spring Brake on Rear Wheels

    Tire

    11R22.5

    Specification – FIGHTER (GVW: 23.2t)

    Model Name

    Model Name

    FUSO FIGHTER 23.2 Tonnes Truck

    Model Name

    Model Code

    FN63FU6RDAA (6 x 2)

    FN63FU6RDAB (6 x 2)

    FN62FR6RDAA (6 x 4)

    G.V.W.

    kg

    23,200

    Front Axle Capacity

    kg

    6,300

    Rear Axle Capacity

    kg

    9,000 x 2

    Dimensions

    Wheelbase

    mm

    6,530

    5,650

    Overall Length

    mm

    11,000

    9,695

    Overall Width

    mm

    2,470

    Overall Height

    mm

    2,630

    2,670

    Cab to rear axle

    mm

    9,010

    7,705

    Max. Body Length

    mm

    8,850 x 2,500

    8,800 x 2,500

    Engine

    Model

    6M60 - CAT6

    Engine type

    In-line 6-cylinder DOHC 24-valve, Common rail system (CRS) VGTurbo intercooler, DPF + BlueTec (SCR system)

    Capacity

    7,545

    Max. Output (JIS)

    270 / 2,500

    Max. Torque (JIS)

    80 / 1,200 – 2,500

    Fuel Tank Capacity

    Litres

    400

    Urea Tank Capacity

    Litres

    49

    Max. Speed

    km/hr

    100

    Approach Angle

    %

    40

    34

    37

    Transmission

    Type

    “ALLISON” 6-speed automaticwith "+/-" mode

    “EATON” 9-speed manual

    “ALLISON” 6-speed automaticwith "+/-" mode

    Steering

    Hydraulic Power Steering

    Min. Turning Radius

    m

    11

    9.7

    Rear Suspension

    Adjustable Air Suspension

    Taper Leaf Spring

    Brake System

    Service & Auxiliary Brake

    Full Air, Dual Circuit , Wedge Type with Auto-slack Adjuster, Anti-lock Brake System (ABS) , Exhaust Brake System

    Hand Brake

    Full Air Spring Brake on Rear Wheels

    Tire

    275 / 70R22.5

    11R22.5-16PR
